| Ship
Name |
TBN |
Year
Built |
2009 |
| Registry |
CHINA |
Capacity |
1652 PAX |
| Class |
CCS COASTAL |
LOA |
163.95M |
| Build Place |
CHINA |
Price
Idea |
TO CONTACT |
| Further
Information |

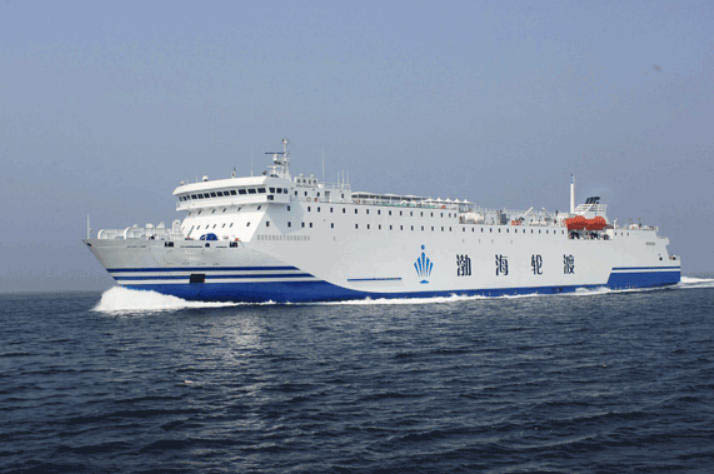

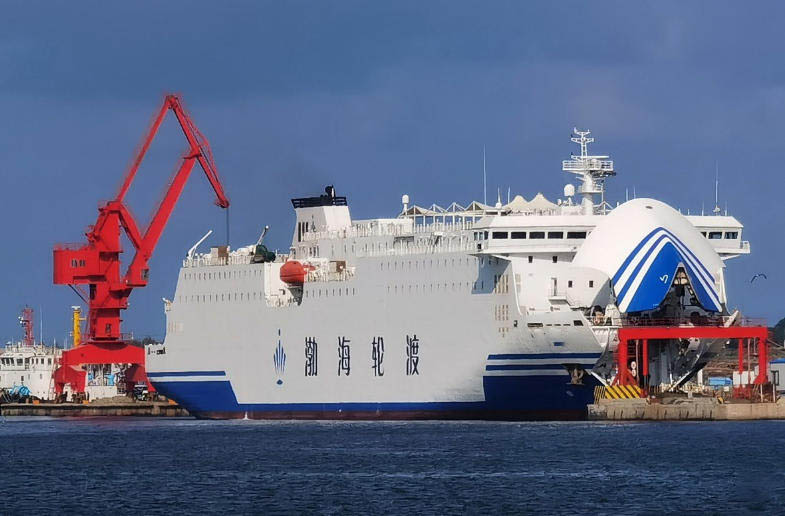

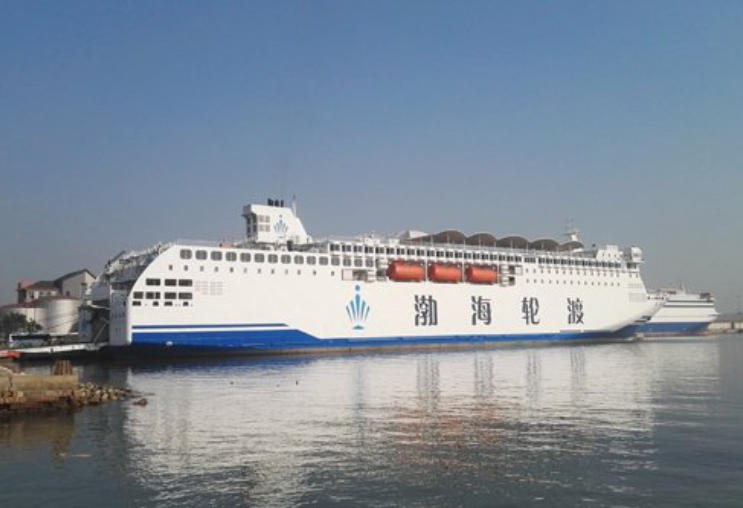

Abt 1652p RORO Passenger vessel for sale
Blt Apil 2009 at Huanghai shipyard China
(Bow/stern Door)
=====================
Type:Ro-Ro passenger Vessel
Flag:China
Class:CCS coastal
LBD:163.95/151.10 x 25.0 x 7.9m
Dwt:Abt 7535 on draft:6.10m
Grt:24024
Net:12973
Air Draft at Summer Load Line : 31.492 m
Height on Top Mast above the Keel : 37.59m
Max Number of Passengers : 1571 persons
Life Saving Capacity : 1652 persons
Lane meters: 1993m
Car Capacity: abt 300pcs
Max Number of Crew :81
Fuel Oil：297.22m?nbsp; Diesel Oil ：152.1m?nbsp; Fresh Water：510m?br />
M/E: STX MAN B&W 12V32/40 6000kw@750rpm x 2sets
A/E: Man-B&W 7L16/24 740kw x 3set
Generators：1FC6520-6SA43,590KW?
Propellers：variable Pitch ?2
Max speed：18.5 knots
F.O.COMSUMPTION : At max. Speed 1.65t/hrs At economic speed（15knts）: 1.26t/hrs
Max endurance range：3000 nautical miles
Lifeboats：2 lifeboats capacity of 80 persons each
Rescue Boats : 1 with capacity of 6 persons
Life rafts : No:8 with capacity of 100 persons each; No:4 with capacity of 50 persons each
Rudder：electro-hydraulic 2pcs
Rudder area：11.76 square meter x 2
Stabilizers： Type JQ-6G
Lightship : 8479.6 t
Delivery/inspection in China as basis
(Price and details would be guided to named buyers upon firm interest. But W.O.G)
|
|
